Name: ضخامت سنج انعکاسی اولتراسونیک چندگانه به روش اکوپالسMultiple echo ultrasonic thickness gauge(سفارشی)
SKU: Multiple echo ultrasonic thickness gauge
Availability: InStock

ضخامت سنج انعکاسی اولتراسونیک چندگانه به روش اکوپالسMultiple echo ultrasonic thickness gauge(سفارشی)

470,800,000تومان

Overview

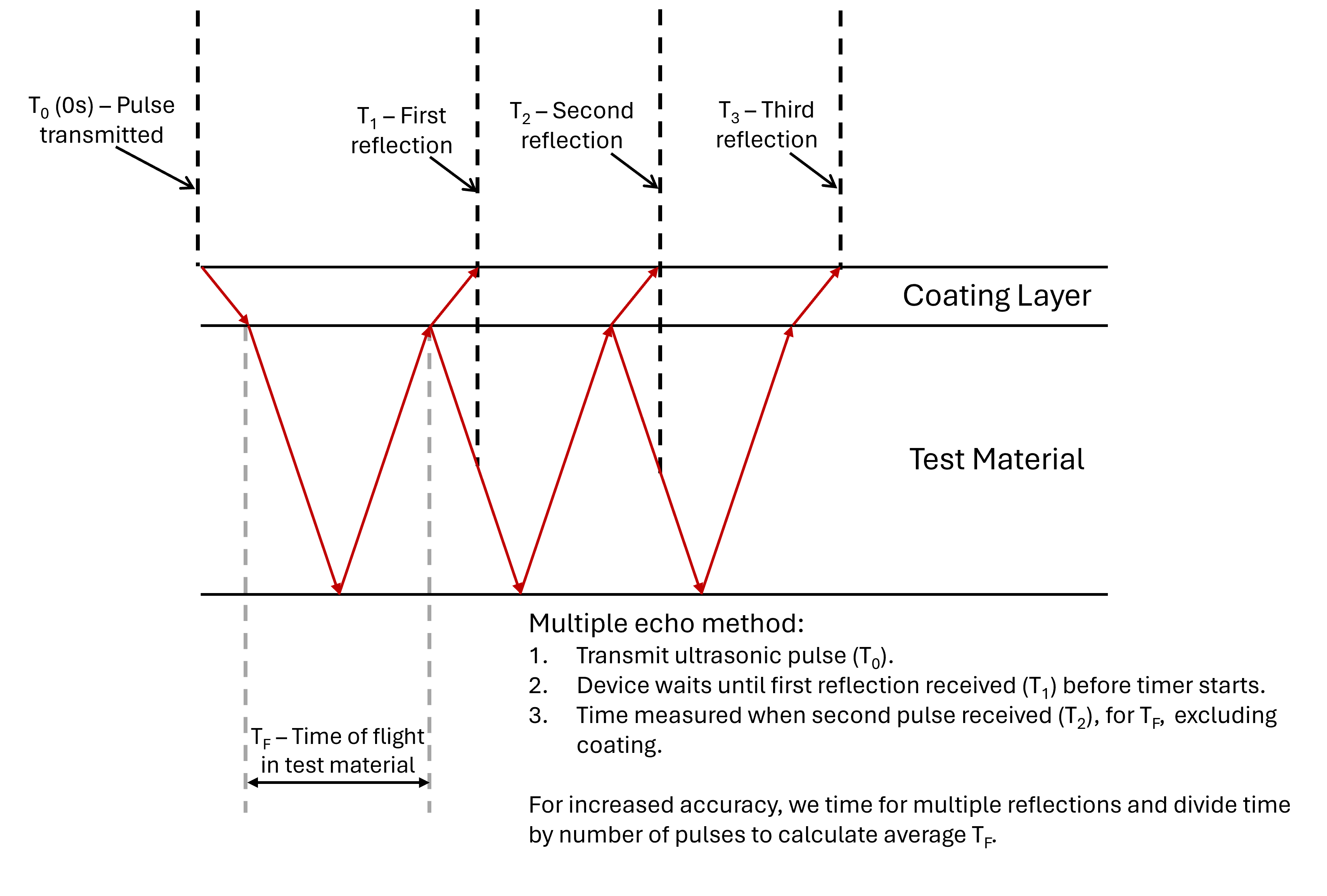

Multi-Echo Capability & Ignores Paint Coating

Easily measure material thickness through paint layers/coatings without removing them. It is able to ignore paint coatings up to 20mm in thickness, giving you the material’s true thickness readings accurate to +/- 0.1mm.

The Portagauge® 6 ultrasonic thickness gauge measures through protective coatings, providing accurate and reliable thickness measurements. This helps you to determine the level of corrosion or erosion without the risk of causing further corrosion damage.

Multiple echo ultrasonic thickness gauge

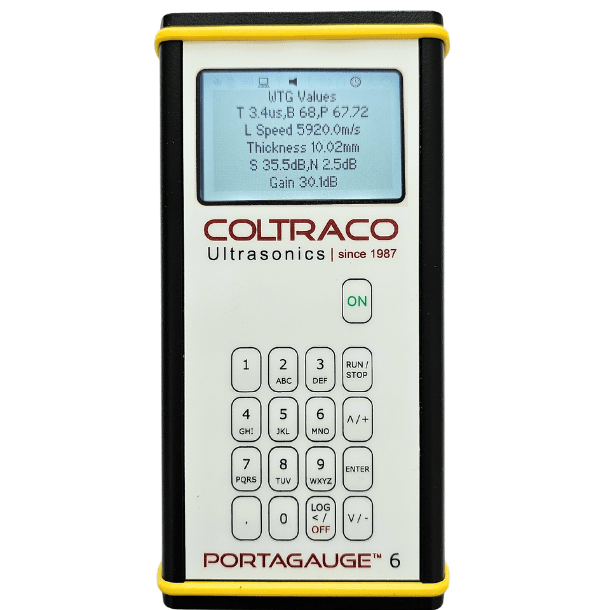

The Portagauge® 6 is a multiple echo ultrasonic thickness gauge for measuring thicknesses of various metals and hard plastics, which ignores any coating up to 20mm in thickness. It comes with built-in datalogger to store up to 200,000 thickness measurements and minimum thickness alarm functionality.

Overview

Multi-Echo Capability & Ignores Paint Coating

Perfect Companion for Wall Thickness Measurements

The Portagauge® 6 multi echo ultrasonic thickness gauge is a highly accurate and reliable thickness gauge for measuring the thicknesses of various metals and hard plastics, developed to meet BS EN 15317:2013 which is the standard for ultrasonic testing, characterisation and verification of ultrasonic thickness measuring equipment.

Some of the features of the Portagauge® 6 are:

Built in database of 14+ different materials containing speed of sound data and an option to enter custom materials
Measurement units available in both metric (millimetres) and imperial (inches)
A-scan and oscilloscope trace functionality is included to assist your measurements
Datalogging – Save readings directly with a press of a button
For marine applications – meets Classification Society requirements and has an LCD backlight to allow working in dark, poor visibility spaces
Battery life up to 12 hours continuous use on a standard 9V PP3 battery for easy replacement, with battery saving mode – turns off after 30 seconds of inactivity
USB Power Connection – when plugged into a power source via the USB port, the Portagauge® 6 will run on USB power, preserving battery life, and allowing continuous use if connected to mains power.

3 در انبار

Dimensions	Height: 168mm Width: 82mm Depth: 31mm Weight: 360g
Measuring Range in Steel	1.50mm – 100.00mm
Material Types	Most metals and plastics, built-in database contains the following: Carbon Steel, Stainless Steel 304, Stainless Steel 316, Cast Iron, Ductile Iron, Copper, PVC, Lead, Nylon, Polyethylene (PE), Aluminium, Asbestos, Fibre Glass, Glass
Accuracy	+/- 0.1 mm
Resolution	+/- 0.01mm
Measurement Units	Metric (mm) and Imperial (inches)
Measurement Mode	Multiple Echo (ignores paint coating up to 20mm thick)
Datalogging	4 MB internal storage for datalogging, capable of recording up to 200,000 thickness measurements. Logs include date, time, a user-set identifier and thickness measurement and can be downloaded to a PC via the micro-USB port.
Frequency	2.25 MHz, 2.5 MHz, 5.0 MHz
Display	Full 128 x 68 pixel graphics with backlight for working in poor visibility conditions
Additional Features	Custom material sound velocity input enables users to test custom materials A-scan functionality to observe material condition and verify correct return backwall echo Oscilloscope trace to assist in performing a good measurement Minimum thickness alarm, audible alert when thickness measurements drop below user-set minimum value
Power Supply	9V PP3 battery, up to 12 hours continuous use with auto shutdown after 30 seconds of inactivity 24/7 power option via micro-USB port
Operating Temperature	Main Unit: -10°C to +65°C
IP Rating	Main Unit: IP 65 enclosure
Sensor Type	Dual element with 0.9m LEMO-00 cable
Sensor Options	2.5 MHz – 14mm diameter sensor, most robust and reliable for metal thickness measurements 5.0 MHz – 10mm diameter sensor, for measuring pipes no smaller than 25mm (1”) diameter 5.0 MHz – 6mm diameter sensor, for measuring pipes no smaller than 15mm (1/2”) diameter
Certifications	CE Meets marine classification society requirements for marine thickness gauging inspection equipment Coltraco is ISO 9001:2015 and ISO 14001 approved
Warranty	Main unit – 3 Year Warranty Sensor – 1 Year Warranty Technical Support – Lifetime of the unit
